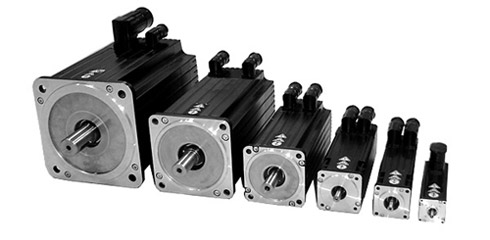

Fastact G Servomotors
Low Inertia and Compact Length
Moog’s Fastact G Series motors are designed for highly dynamic servo applications where positioning times of 30 mSec or less are often the norm. The Fastact G Series offers one of the industry’s widest power ranges with standard models available at continuous stall torque ratings from 0.15 to 77 Nm (1.3 to 681 lb-in). The modular design is supported by a variety of options with Moog’s application engineers capable of supplying fully customized solutions.
Features
- AC Servomotor (Synchronous)
- Low Inertia Compact Length
- Type of Motor: Totally enclosed, natural cooling (optional fan ventilation)
- High Voltage (600Vdc Brushless Servomotor) available
- Flameproof Servomotors available
Benefits
- Superior Dynamics improves cycle time
- Compact, lightweight
- Proprietary low-cogging design
- Rugged, minimum maintenance
- Flexible design
| Measuring Unit | FASTACT G | |||
|---|---|---|---|---|
| Continuous stall torque M° | Nm [lb-in] |
0.15-77 |
||
| Peak torque Mmax | Nm [lb-in] |
0.5-240 |
||
| Rated Speed nN | min-1 [rpm] | 9000-2200 | ||
| Rated Power PN | kW [hp] |
0.13-12 [0.2-16] |
||
| Rated Torque MN | Nm [lb-in] |
0.14-48 [1.2-425] |
||
| Moment of Inertia J | Kg cm2 [lb-insec2 x 10-4] |
0.09-152 [0.8-1345] |
||
| Position transducer |
Standard Optional |
Resolver Encoder |
||
| Temperature monitoring | NTC or PTC | |||
| Brake | Optional | |||
| Rated bus voltage Vdc |
V |
325/565 |
||
| Certificate/marks |
CE, UL/cUL |
|||
| Cooling | Natural | |||
